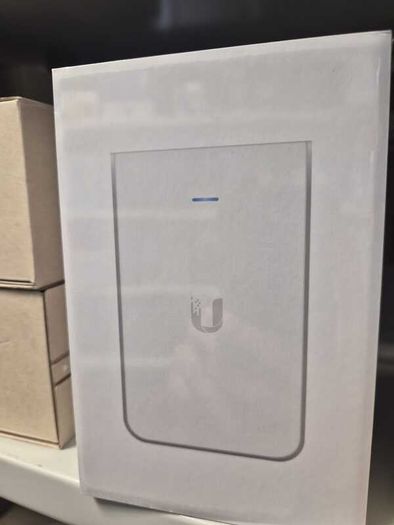

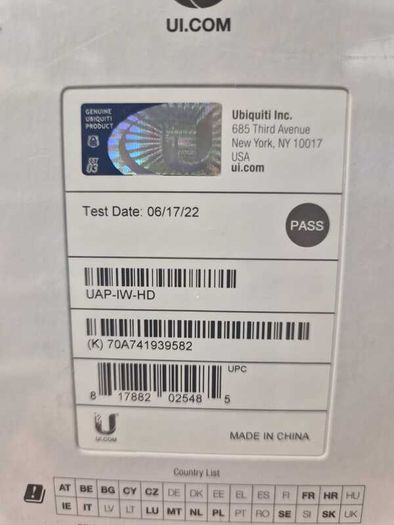

ubiquiti In-Wall HD UAP-IW-HD

Condition: New

Dimensions
139.7 x 86.7 x 25.8 mm
(5.5 x 3.4 x 1")
WiFi Standard
WiFi 5
Spatial Streams
6
Coverage Area
90 m² (1,000 ft²)
Max. Client Count
200+
Uplink
GbE
Mounting
Wall
(Mount Included)
Power Method
PoE
PoE+(Required for PoE passthrough)

Performance
MIMO
5 GHz
4 x 4 (DL MU-MIMO)
2.4 GHz
2 x 2 (DL MU-MIMO)
Max. Data Rate
5 GHz
1.7 Gbps (BW80)
2.4 GHz
300 Mbps (BW40)
Antenna Gain
5 GHz
4 dBi
2.4 GHz
1.8 dBi
Max. TX Power
5 GHz
26 dBm
2.4 GHz
23 dBm
Max. BSSIDs
8 per Radio
Supported Data Rates
802.11ac (WiFi 5)
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80)
58 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 160)
802.11n
6.5 Mbps to 300 Mbps (MCS0 -MCS15, HT 20/40)

Features
Wireless Meshing
✓
Band Steering
✓
802.11v BSS Transition Management
✓
802.11r Fast Roaming
✓
802.11k Radio Resource Management (RRM)
✓
Advanced Radio Management
✓
Passpoint (Hotspot 2.0)
✓
Captive Hotspot Portal
Custom Branding Landing Page
✓
Voucher Authentication
✓
Payment-Based Authentication
✓
External Portal Server Support
✓
Password Authentication
✓
Guest Network Isolation
✓
Private Pre-Shared Key (PPSK)
✓
WiFi Speed Limiting
✓
Client Device Isolation
✓
WiFi Schedules
✓
RADIUS over TLS (RadSec)
✓
Dynamic RADIUS-assigned VLAN
✓

Hardware
Max. Power Consumption
11W (Excluding PoE output)
Supported Voltage Range
44–57V DC
Networking Interface
(5) GbE RJ45 ports
Weight
210 g (7.4 oz)
Management
Ethernet
Built-In Switch
(4) GbE ports with (1) PoE output
Enclosure Material
Polycarbonate
LEDs
System
Status
Channel Bandwidth
HT 20/40, VHT 20/40/80/160 (MHz)
Operating Frequency
US/CA:
2400 - 2472 MHz
U-NII-1: 5150 - 5250 MHz
U-NII-2A: 5250 - 5350 MHz
U-NII-2C: 5470 - 5725 MHz
U-NII-3: 5725 - 5850 MHz

Worldwide:
2400 - 2483.5 MHz
5150 - 5850 MHz
Ambient Operating Temperature
-10 to 60° C (14 to 140° F)
Ambient Operating Humidity
5 to 95% noncondensing
NDAA Compliant
✓
Certifications
CE, FCC, IC, cULus

Software
Application Requirements
UniFi Network
Version 6.0.45 and later
