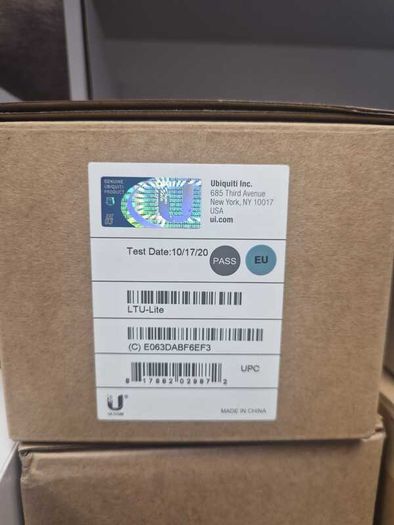

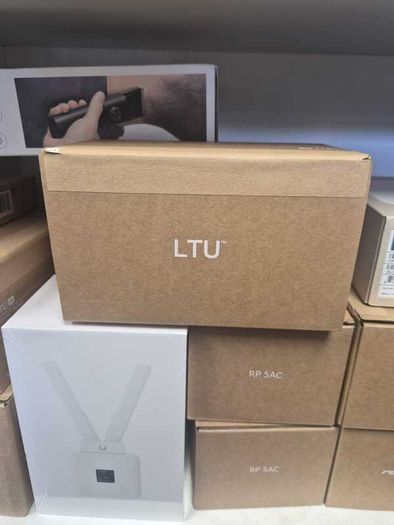

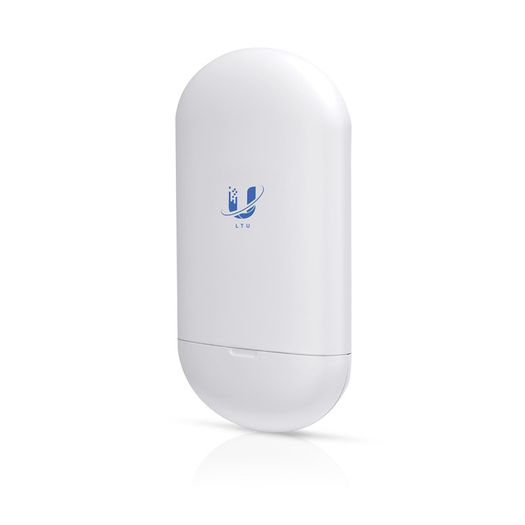

ubiquiti ltu lite

Condition: New

Mechanical
Dimensions 153 x 84 x 39.5 mm (6 x 3.3 x 1.6")
Weight 250 g (8.8 oz)
Enclosure material UV-stabilized polycarbonate
Mounting Pole mount, wall mount (Kit included)
Wind loading 20 N at 200 km/h (4.5 lbf at 125 mph)
Wind survivability 200 km/h (125 mph)
Weatherproofing IPX5
Hardware
Networking interface (1) GbE RJ45 port
Power method Passive PoE 2-pair (4, 5+; 7, 8-)
Power supply 24V, 0.5A gigabit PoE adapter (Included)
Supported voltage range 22—27V DC
Max. power consumption 8.5W
ESD/EMP protection Air/contact: ± 24kV
Ambient operating temperature -40 to 60° C (-40 to 140° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
NDAA Compliant Yes
Software
Modes PtMP CPE, PtP*
*1.5.1 and later 1.5.x series firmware.
Services SNMP, SSH, dynamic DNS, webserver, remote log, ping watchdog
Utilities airView, speed test, alignment, discovery, ping, traceroute, cable test, constellation
Auto distance adjustment Yes
Auto power adjustment Yes
Network Bridge/Router* mode
*Router mode is available in PtMP CPE mode only.
Security Yes
Statical reporting Yes
Management interface Bluetooth management for easy setup over UISP App
WEB UI
Minimum software requirements Any modern web browser
iOS or Android based smartphone
System
Maximum throughput 900+ Mbps*
*FW version 2.3.0 and later.
Encryption WPA2-PSK (AES)
Uplink/downlink ratio 25/75, 33/67, 50/50
RF
Operating frequency*
US/CA
U-NII-1
U-NII-2A
U-NII-2C
U-NII-3

EU


Worldwide

5150 - 5250 MHz
5250 - 5350 MHz
5470 - 5725 MHz
5725 - 5850 MHz

2400 - 2483.5 MHz
5150 - 5875 MHz

2400 - 2483.5 MHz
4800 - 6200 MHz
*Depends on regulatory region.
Max. conducted TX power 22 dBm (per chain)
Channel bandwidth 10/20/30/40/50/60/80/100 MHz*
*FW version 2.3.0 and later.
Antenna gain 13 dBi
Cross-pol isolation 20 dB
Beamwidth HPOL/VPOL/elevation: 45°
Polarization Dual linear
