Dust extraction system for woodworking machinery

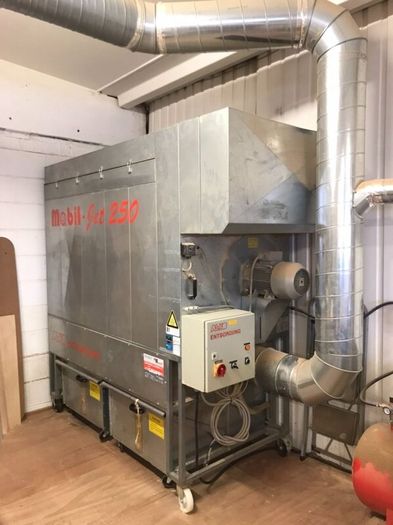

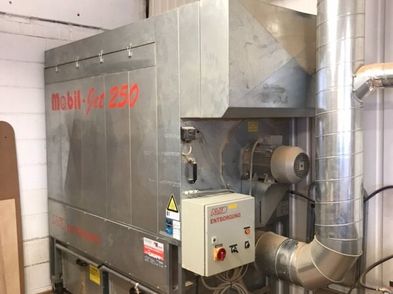

AL-KO Mobil JET 250 Mobile extraction system. Year: 1997

Dust extractor, chip extraction unit. German make - very good working condition. Features a self-cleaning pneumatic negative pressure filter. The filter is pneumatically cleaned by compressed air pulses during operation, ensuring high efficiency of the unit (requires hook up to a 200L air compressor). The fan is positioned on the clean air side, minimizing the risk of explosion. Ideally suited for dust extraction from wide belt sanders, panel saws, spindle moulders, planers, thicknessers. Can be placed interior or exterior to workshop.

Suction Capacity: 4900 m3/h
Extraction outlet 250mm diameter
Inlet 250mm diameter
Fan power: 6.5 kW
Airflow: 4900 m3/h
Vacuum: 2740 Pa
3 phase
Dimensions; Length 2300mm. Height 2180mm. Depth 980mm.
Dust bin collection capacity: 2 containers combined = 500 liters.

Available for viewings.
