Description

HEC PRO LIFT 1.2
Professional Mobile Lifting Table

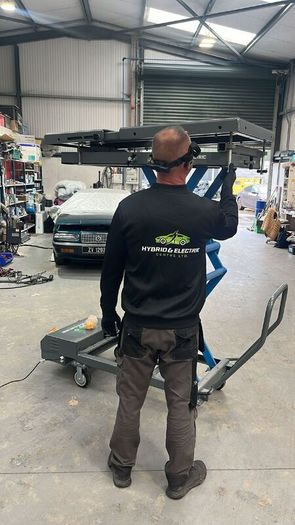

The HEC PRO LIFT 1.2 is a heavy-duty mobile lifting table developed for the safe and precise removal and installation of vehicle components.
With a lifting capacity of 1,200 kg, it is suitable for a wide range of applications, including:
EV battery packs
Engines
Transmissions and transaxles
Fuel tanks
Suspension systems
Cradles and subframes
Chassis components

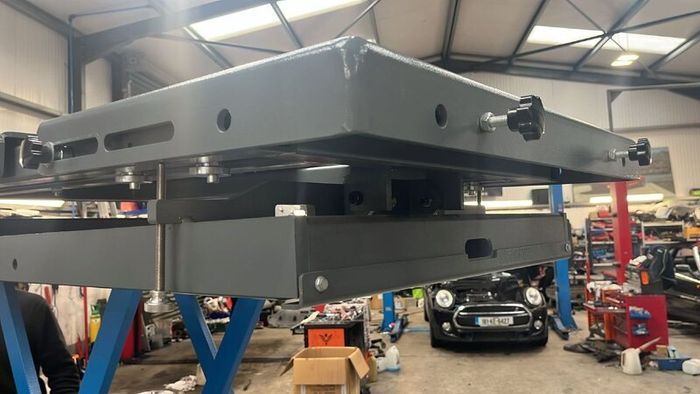

Precise Positioning & Flexible Platform

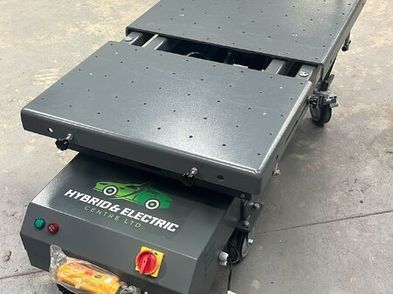

The lifting platform is equipped with a continuous matrix of location holes, allowing vehicle-specific tools and fixtures to be securely mounted directly onto the platform.
For accurate component alignment, the supporting table provides:
±50 mm adjustment in the X-axis
±50 mm adjustment in the Y-axis
±5° platform tilting angle
This flexibility enables precise positioning during both removal and installation operations.
Stable & Safe
The generously sized base provides excellent stability, even when handling heavy vehicle components.
Standard safety equipment includes:
Warning buzzer
Integrated wheel brakes
Parachute valves on the hydraulic cylinders
These features contribute to safe and controlled lifting and lowering operations.
Flexible Drive & Control
The HEC PRO LIFT 1.2 can be operated using either an electro-hydraulic pump or a pneumatic foot pedal, depending on the workshop's requirements.

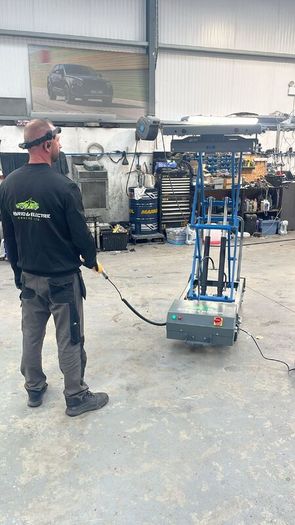

A wired remote control allows the operator to control the lifting table from a convenient working position, providing greater freedom and precision during service operations.

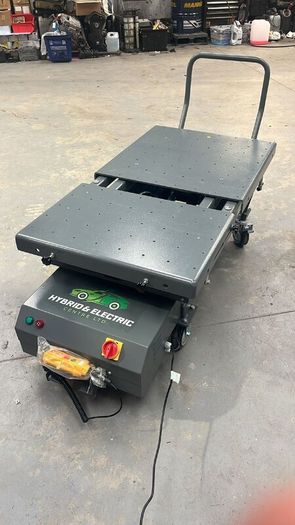

Fully Mobile
The HEC PRO LIFT 1.2 is designed for easy movement around the workshop.
The mobile chassis is equipped with:
2 fixed rollers
2 swivelling rollers
Integrated locking brakes
The combination of large rollers and a stable base makes the lift easy to manoeuvre while ensuring secure positioning during use.
