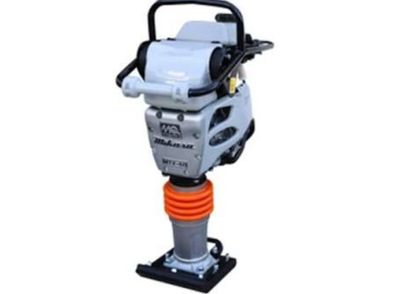

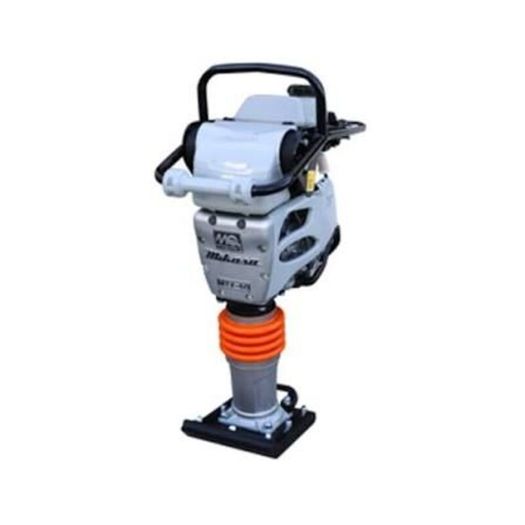

Mikasa MTX-60 Jumping Jack

MTX60HD
Honda GX100 Engine, 3,060 lb impact force, 10.4 in shoe
For applications requiring even greater productivity, Mikasa MTX60HD 4-cycle rammer is the answer. Now with a redesigned fuel-tank that meets new EPA standards and features an integrated tachometer/hour meter.
MTX-Series rammers are renowned for performance and ease of operation.
The MTX-Series includes the features most preferred by contractors such as:

Cyclonic air cleaners that capture 98% of airborne dust particles
Long-lasting laminated wood and steel shoe
Low vibration handles for operator comfort
Combination hour meter/tachometer
Durable guards to protect the engine from damage
Redesigned fuel tank to meet EPA standards for evaporative emmissions


Unit Specifications
Blows Per Min. Up to 695*
Impact Force 3,064 lbf 13.6 kN
Shoe Jump Height 3.1 in 79 mm
Shoe Dimensions (LxW) 13.4 x 10.4 in
340 x 265 mm
Travel Speed Per Min. 55.8 ft 17 m
Fuel Tank Capacity 2.7 qt 2.5 L
Dimensions & Weights
Overall Length 28.1 in 714 mm
Overall Width 13.8 in 350 mm
Overall Height 40.4 in 1027 mm
Operating Weight 141 lb 64 kg
Engine Specifications
Engine Make/Model Honda GX100
Start Method Recoil
Engine Power 2.8 HP 2.1 kW
Engine RPM 4,100
Fuel Type Gasoline
Notice: Features and equipment specifications are subject to change without notice.
