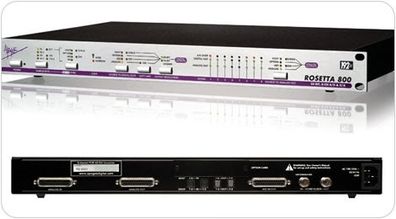

Apogee - Rosetta 800 - 192 Version

Includes firewire card and D-Sub to balanced jacks - in and out.

Unit is in very good condition

The Apogee Rosetta 800 is an 8-channel, 24-bit/192kHz AD/DA converter that offers high-quality audio conversion with flexible connectivity. It supports sample rates up to 192kHz, includes Apogee's SoftLimit and UV22HR technology, and features both ADAT and AES/EBU digital I/O.

Key Specifications:

Sample Rates: 44.1 - 48kHz, 88.2 - 96kHz, and 176.4 - 192kHz (optional)

Bit Depth: 24-bit

Analog Inputs: 8 channels, balanced, D-Sub connector

Analog Outputs: 8 channels, balanced, D-Sub connector

Digital Inputs: 4x AES (D-Sub), ADAT/SMUX (Toslink), Word Clock (BNC)

Digital Outputs: 4x AES (D-Sub), ADAT/SMUX (Toslink), Word Clock (BNC)

Dynamic Range: 114 dB A-weighted (AD + DA)

THD+N: -105 dB (AD), -103 dB (DA)

Power: 90-250 VAC, 50-60Hz, 45W

SoftLimit: Switchable for all 8 input channels

UV22HR: Word length reduction for 16-bit output

Intelliclock: Dual-stage jitter rejection

Form Factor: 1U rackmount

Optional Cards: Expandable via optional cards for additional connectivity
