Satellite meter Satfinder Measuring Device for Exact Adjustment of Your Digital Satellite Antenna with High Input Sensitivity

Condition: New

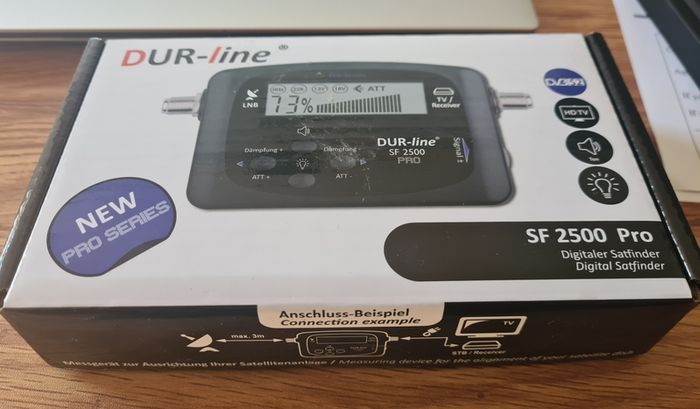

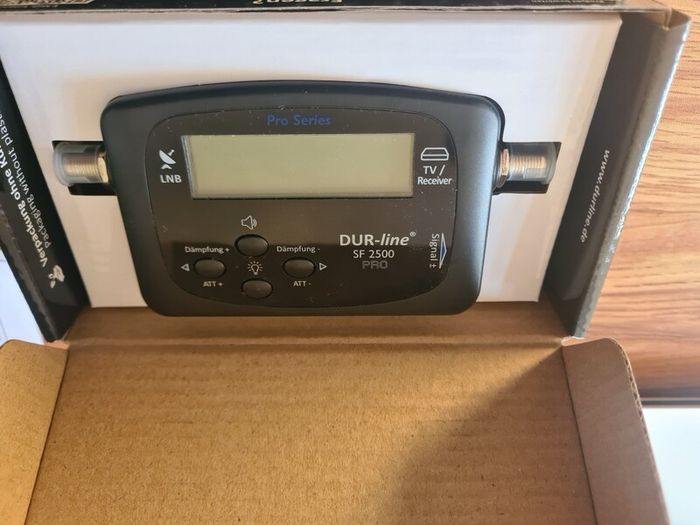

Brand New in box
COLLECTION ONLY

Additional details
Dur-Line SF 24XX Satellite Finder, strength reader for precise alignment of your digital satellite aerial, with high input sensitivity.

Signal strength reader for precise alignment of digital satellite aerial.
Battery not necessary. Power supply via USB connection.
Illuminated display and with audio indicator.
Sensitivity adjustment via level regulator.
4 LEDs for displaying level and frequency.

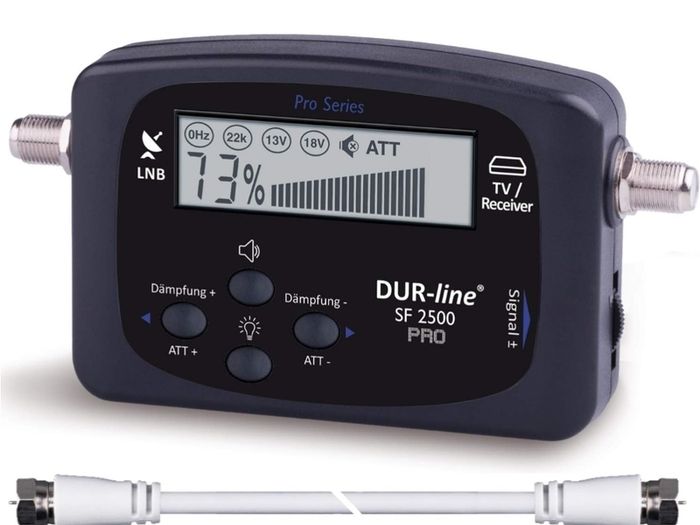

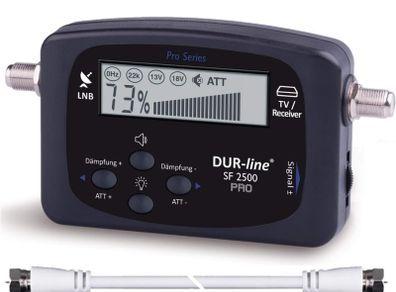

Satellite finder with display screen and acoustic indication, for aligning satellite dishes. This well thought out and tested device can be simply inserted between the LNB and the receiver. When aligning the aerial, the reception is indicated via a visual, backlit display and via a sound indicator, allowing for quick, optimal alignment of the aerial. The additional sensitivity control feature allows for optimum adaptation to the signal strength. As an additional feature, the 4 built-in LEDs immediately display the 4 most important settings on your receiver.
14 V / 18 V / 22 KHz / 0 KHz

Technical details

Frequency range: 950–2300 MHz (digital/analogue).
Control for extremely high input sensitivity.
Background scale illumination.
Audio indicator.

Power supply via receiver / PC card +13 V to + 18 V.
Power consumption: max. 100 mA.
Operating voltage: 15 V ± 3 V.
DC transmission.
Compatible with 22 KHz.
Digitally suitable.
Connections: 2 x F sockets
Dimensions: 105 x 62 x 43 mm
With 21 cm connecting cable
