Description

Condition: New

FBT IRELAND
DEMO These Subs at Sound Lease Ballymount
D12K524
Or Call 01-4509711 to arrange a Demo.

PRODUCT DESCRIPTION

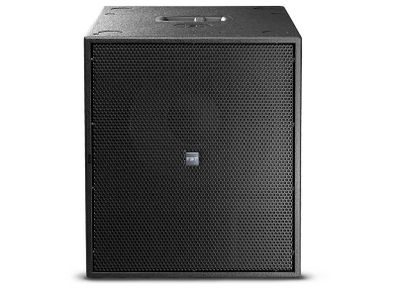

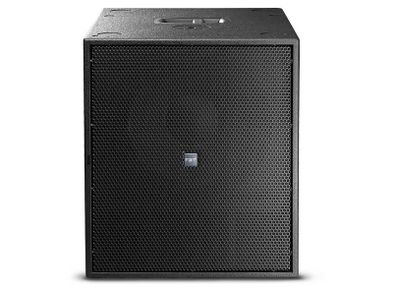

VHA 118SN/SND - NEW
Processed Bass Reflex Active Subwoofer - 1x18" - 2500Wrms - INFINITO compatible - Dante interface optional

The design of the VHA118SND has produced a unique low-end module that is capable of generating extremely high SPL for prolonged periods.

FBT HORIZON VHA 118SND is a direct radiation ground subwoofer, has 1 x 18" long excursion woofer with 4" coil and 2500W Class D amplification capable of 143 dB SPL. The bass reflex cabinet offers substantial energy down to 30Hz and is ideal for extending and reinforcing the low frequencies of the HORIZON VHA system. It has presets to create various configurations with cardioid directivity, where some subwoofers face rearwards from the audience to acoustically cancel the sound pressure behind the cluster. The enclosure, optimised with BEM-type acoustic simulations to reduce resonance and turbulence of the ducts, is built in 0,70" ( 18mm ) birch plywood with black plyuria finish, has six alluminum handles, predisposition for 4 wheels, two M20 stand sockets for horizontal or vertical use and 4 support points set up to accommodate accessories in ground stack configuration in conjunction with VHA 406ND and VHA 112SND models. The front of the speaker is covered with a powder coated perforated steel grille.

The summit of the entire project is the new 2500W amplification module with built-in TCP/IP network interface. Based on OCA ALLIANCE AES70 standard, it communicates with FBT's INFINITO management suite remote control software and receives 24-bit 48-96kHz digital audio streaming from all devices compatible with Audinate's DANTE standard. The HORIZON VHA 118SND is equipped with intelligent forced ventilation and OLED display with encoder for parameter settings.

A high-brightness blue front LED allows remote identification of the device also in daylight.

KEY FEATURES

Bass-reflex amplified subwoofer
460mm (18”) high excursion B&C woofer with 100mm (4”) coil
Frequency response from 30Hz to 100Hz
2500Wrms class D amplifier with switching power supply
Network interface TCP/IP - AES70 compatible
Ethercon RJ45 input and output for daisy-chain
Remote control by INFINITO System Management Suite
OLED DISPLAY and encoder with PUSH for easy onboard control
DANTE audio streaming 24bit 48-96KHz
Neutrik PowerCON IN and LINK power connectors
Box in 18mm (0.7”) birch plywood with anti-scratch varnish
Two M20 stand sockets and 4 FBT aluminum handles, predisposed for 4 x 100mm (4”) swivel casters
Integrated mechanics compatible with VHA406ND and VHA112SND for ground stack configurations.
Extremely robust grid with protective fabric
Ideal for reinforcing and extending the low range of the VHA system, it can only be used with VHA406ND or as an infra if present also the VHA112SND

Configuration: Single Reflex
Built-in Amplifier LF/HF: 3500
Built-in Amplifier Peak LF/HF: 5000
Frequency Response: 30Hz Preset Dependent
Low Frequency Woofer: 1x 18" / 4" coil
Maximum SPL Cont/Peak: 137 / 143dB half space
Dispersion: Omnidirectional
Input Connector: 2x XLR In / Out
AC Power Requirements: 650 VA
Power Cord: 5m
Net Dimension (WXHXD): 606 x 700 x 720mm
Net Weight: 65kg
Transport Weight: 75kg
