Description

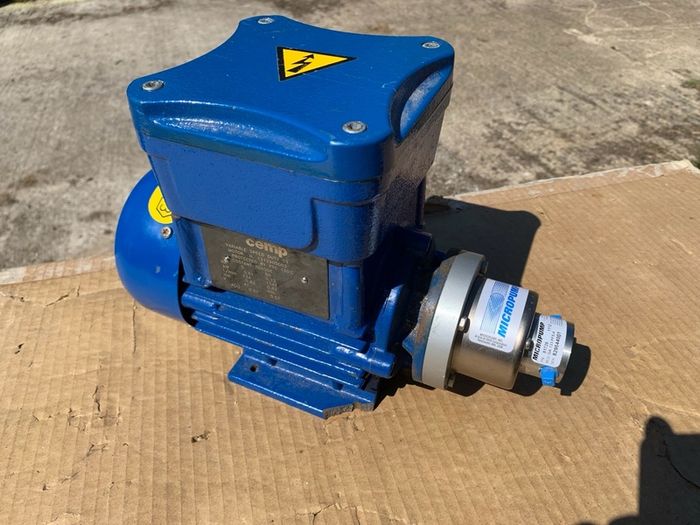

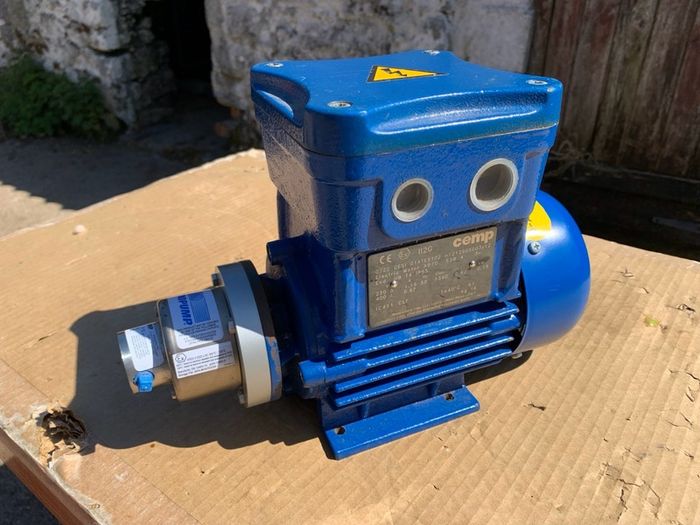

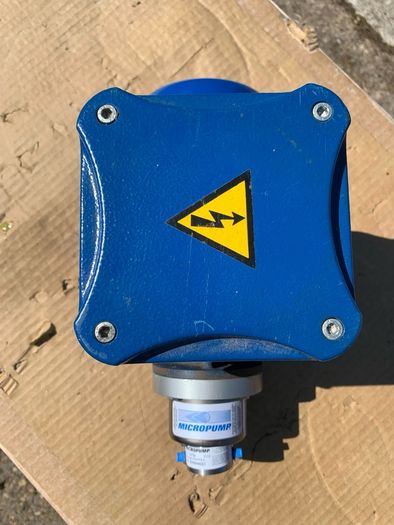

CEMP Explosion Proof ATEX Electric Motor + Micropump Gear Pump Head – 0.18kW – Like New Condition

For sale is a high-quality CEMP flameproof (Ex) electric motor complete with a stainless steel Micropump magnetic drive gear pump head.
Key specs from the motor nameplate:
• Manufacturer: CEMP (Italy) – specialist in explosion-proof motors
• ATEX certified: II 2G (Ex d IIB or similar – suitable for Zone 1 hazardous areas)
• CESI 01ATEX102 certification
• Power: 0.18 kW (0.25 HP)
• Voltage: 230/400V 3-phase
• Frequency: 50 Hz
• Speed: approx. 1340–1400 rpm
• Protection: IP55 / IP65 terminal box
• Duty: Variable speed / S1 capable
• Frame: 112 size (compact but robust)
• Weight: approx. 16 kg
The motor is fitted with a Micropump (USA) precision magnetic-drive gear pump (model references visible: 1112 series / 82554401). These pumps are widely used for accurate, leak-free dosing of chemicals, oils, solvents, and aggressive fluids – ideal for hazardous or high-purity applications.
Condition: Excellent used condition. Taken from working equipment, no major damage, paint is good with typical workshop marks. Motor spins freely, pump head looks clean inside (not fully disassembled). All labels and warning stickers are intact.
Applications:
• Chemical processing / dosing
• Pharmaceutical or laboratory fluid transfer
• Hazardous area pumping (ATEX zones)
• Industrial metering systems
• Any application requiring a small, reliable explosion-proof drive + sealless pump
This is a premium combination — CEMP motors are known for their robustness in explosive atmospheres, and Micropump heads are top-tier for precision and reliability.
Viewing & collection welcome.
Serious enquiries only. No time wasters please.
Any questions? Ask away!
