Description

Full Description
Small and Mighty
Miniaturised components with high-caliber features - Sennheiser XS Wireless Digital packs a huge amount of power and functionality into compact components so you can perform at your best. Transmitters and receivers are unobtrusive and lightweight. Their sleek design and small size make them easy to hide, store, and transport. They remove the need for cables that can often restrict movement, giving you the freedom to make the stage your own.
Each component is powered by a built-in lithium-ion battery, giving you up to five hours of continuous operation to handle even the longest of gigs. Multiple transmitters can be paired with a single receiver too. So even if you have limited space on your sound desk, you can still transmit larger performances across the XSW-Digital's 2.4GHz digital frequency spectrum and still take advantage of the system's exceptional sound quality.

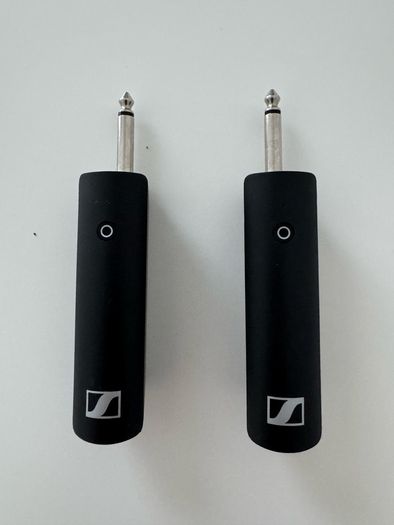

The XS Wireless Digital Instrument Base Set
This handy set gives you an XSW-Digital transmitter and receiver, a handy belt clip, and a 1/4'' (6.3mm) extension cable. Both the transmitter and receiver are equipped with pivoting 1/4'' (6.3mm) jack plugs for connecting to your instrument and amplifier/pedals/sound desk and more. The belt clip allows you to mount your transmitter to your clothing while you run the extension cable to your instrument. No more wires getting in your way - this wireless 'cable replacement' puts you in control of your performance.
The Freedom of Simplicity
Wireless has never been easier. The Sennheiser XS Wireless Digital series gives you what you want without the hassle of extensive configuration processes and confusing controls. Every XS Wireless Digital system is intelligent and intuitive. Pre-paired plug-sets let you get setup quickly straight out of the box, whilst channel allocation and interference management are handled automatically. All you have to do is plug your transmitter and receiver in, make sure they're paired, and you're good to go. No complicated controls, no complex processes, and no crowded interfaces. A single button and status LED on each component give you all the control you need.
Superior System Flexibility
Adaptability is an important aspect of any wireless system. With Sennheiser XSW-Digital systems, it's a priority. Giving you the ability to operate up to five XS Wireless Digital systems simultaneously, Sennheiser have created a wireless solution that lets you perform exactly the way you want to. The series consists of ten different kits designed for a wide variety of situations, as well as six single devices for creating a system that's built around you. A diverse range of interfaces, including 3-pin XLR, 3.5mm mini-jack, and 1/4'' jack, mean you can use your Sennheiser XSW Digital system with a huge selection of microphones, instruments, and equipment. Whether you're plugging your favourite handheld microphone into the XLR transmitter, a hidden lavalier mic into a 3.5mm transmitter, or the 1/4'' jack transmitter into your guitar. XS Wireless Digital lets you adapt your system to suit your performance. Combined with a vast array of accessories, the XS Wireless Digital series makes sure you can be ready for anything.
This Instrument Base Set provides you with a transmitter and receiver, each with a pivoting 1/4'' (6.3mm) jack plug (various transmitters and receivers with other connectors (XLR, 3.5mm, and 1/4'') are not included, but are available separately as individual components or as part of other sets). The transmitter is designed to plug into your instrument directly. It can also be attached to you using the included belt clip, whilst the 1/4'' extension cable runs from the transmitter and into your instrument for hidden and unobtrusive operation. You can plug the receiver into your amplifier, effects unit, pedals, sound desk, PA, or other device to receive the signal from your instrument. The Sennheiser XS Wireless Digital system removes the need for restrictive cables between you and the sound desk.

Features

Plug and play wireless instrument system that operates in the digital 2.4GHz frequency spectrum
Lightweight and compact plug-on transmitter and receiver, both with pivoting 1/4'' (6.3mm) jack plugs
A 1/4'' extension cable and belt clip allow you to attach the transmitter to your clothing to keep it out of your way when playing
Incredibly easy to use - a single button and LED status indicator handle power and linking
Plug sets come pre-paired, so you can get setup and performing straight out of the box
Up to five XS Wireless Digital systems can be operated simultaneously
Channel allocation and interference management are handled automatically
Operating range of up to 75m (250ft) in optimal conditions
Multiple transmitters can be paired with a single receiver
Each component is lightweight and compact, making them easy to keep hidden when in use
Powered by in-built USB-rechargeable lithium-ion batteries providing up to 5 hours of continuous runtime
Perfect for rehearsals, jamming, small gigs, videographers, vloggers, mobile journalists and more
Specifications

Operating Frequency Band: 2,400mHz - 2,483.5MHz (2.4GHz band)
Operating Range: 75m / 250ft (in optimal conditions)
Codec: aptX Live
Audio Frequency Response: 10Hz - 18kHz
Audio Output: Max. 12dBu
Signal-to-Noise Ratio: ≥106dB
THD: <0.1-percent
Audio Latency: <4ms
Transmission Power: Max. 10mW (EIRP)
Modulation: GFSK with TDMA
Cell Type: Li-Ion
Nominal Voltage: 3.7V
Cell Capacity: 850mAh
Operating Time: Up to 5-hours
USB-C Input Voltage: Typ. 5.0V
Charging Temperature: 0°C to 60°C / 32°F to 140°F
Charging Time: Typ. 3-hours
Dimensions:
Instrument TX: Approx. 122mm x 24mm x 28mm
Instrument RX: Approx. 122mm x 24mm x 28mm
Operating Temperature: -10°C to +55°C / 14°F to 131°F
Relative Humidity: 95-percent (non-condensing)
