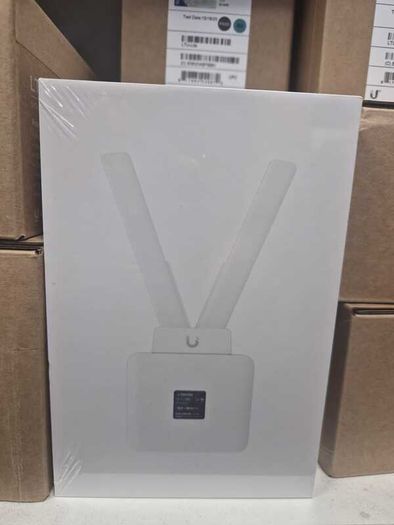

ubiquiti Mobile Router UMR

Condition: New

Dimensions
190 x 89.8 x 28.8 mm
(7.4 x 3.5 x 1.1")
Networking Interface
(2) GbE RJ45 ports, LTE Cat 4 radio, WiFi 4
SIM
Nano SIM
LTE Bands
B1, B3, B7, B8, B20, B28
PoE Interface
(1) PoE input
(1) PoE output (Max. 10W, requires PoE+ switch)
Mounting
DIN rail, Wall (Mounts Included)

Mechanical
Weight
Without mount: 257 g (9.1 oz)
With mount: 303 g (10.7 oz)
Enclosure Material
Polycarbonate, aluminum alloy
Mount Material
Polycarbonate

Features
WAN
Priority & Fallback
✓
Cellular
✓
Ethernet
✓
LTE Passthrough mode
✓
Ethernet Bridge Mode
✓
VPN Client
OpenVPN
✓
WireGuard
✓
Site-to-Site VPN
IPsec
✓
WireGuard
✓
WiFi Standard
WiFi 4
Port Forwarding
✓
Firewall
✓
Static Routes
✓

Networking
Supported Data Rates
802.11n
6.5 Mbps to 150 Mbps (MCS0 - MCS7, HT 20/40)
802.11g
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b
1, 2, 5.5, 11 Mbps

Hardware
Management
Ethernet
WiFi
LTE Throughput Speed
Download 150 Mbps / Upload 50 Mbps
GPS
✓
Antennas
Ports
(1) External LTE antenna (TS9 male)
Type
(1) External LTE antenna (TS9 male)
(1) Internal WiFi
(1) Internal GPS
Max. TX Power
19 dBm
WiFi MIMO
1 x 1
Max. Power Consumption
9W
Power Method
PoE+ (48-54V DC)
USB Type-C (5V DC, 3A)
4-pin ATX DC (9V DC, 1A)
Power Supply
USB Type-C, 5V DC, 3A (Adapter included)
Display
1.3" touchscreen
Ambient Operating Temperature
-20 to 45° C (-4 to 113° F)
Ambient Operating Humidity
5 to 95% noncondensing
Certifications
CE, UKCA, GCF
