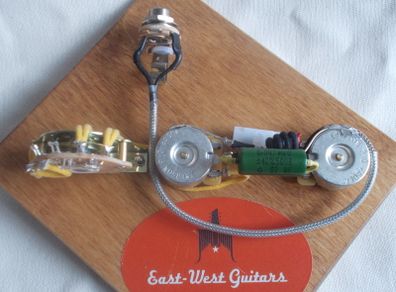

Fender Telecaster 3-Way Wiring Harness (50's Wiring Modification)

Condition: New

Available from my website>>

https://www.eastwestguitars.com/product/telecaster-3-way-wiring-harness/

***Standard modern wiring for same price and reverse control harness available upon request for extra €5***

Please allow up to three working days between build time and postage.

Standard Tele harness can be supplied with an EWG Treble Bleed/Volume Mod for €3 extra

Left-handed harness is €5 extra, please inquire first before purchase if you require this.

Fender Telecaster pre-wired control harness with 50's Les Paul wiring modification. Two simple solder connections required. Drop in upgrade for Squire and Affinity Tele's.

**Can be supplied with crimp connectors for solderless hook up if required**

Kit includes:
• Emerson PRO CTS Solid Shaft (audio taper/logarithmic) potentiometers (Matched)
• Oak Grigsby 3-Way Switch
• Switchcraft 1/4" Mono Input Jack with pre-wired harness using twisted vintage push back wire enclosed with heat shrink tubing and also used on connections for strength
• ***Please note that due to the limited nature and rarity of the Soviet era K40Y-9 capacitors that are pictured here I have to now issue my wiring kits with Orange Drop capacitors. You will receive a 400V ‘Orange Drop’ 0.047uF capacitor with this kit***. If you require a 0.022uF capacitor please leave me a message in the purchase window.
• Professionally soldered using vintage push-back wire.

**Switch Tip and Control Knobs Not Included**

What’s so special about this ’50s wiring? It affects your tone in three major ways:

1. The overall tone gets stronger, tighter, and more transparent. It’s difficult to describe, but you might say it’s more “in your face.”
2. The typical treble loss that occurs when rolling back the volume is much less than with standard wiring. Both the volume and tone controls become more responsive, and they react more smoothly without the usual hot spots. Another bonus: By simply rolling back your guitar volume a bit, you can clean up an overdriven amp without getting lost in the mix.
3. The tone and the volume controls interact with each other—something you might be familiar with from certain tweed-era Fender tube amps. When you change the volume, the tone changes a little bit as well, and vice-versa. This may be strange at first, but you only need a few minutes to get used to it.

The ’50s wiring exhibits much less treble loss that standard wiring because it follows a completely different curve, depending on the ratio of your pot. It works best with audio taper pots, preferably those with a 60:40 or 70:30 ratio. Smaller ratios like 80:20 or 90:10 limit this benefit and result in the typical “on/off” or “bright/dull” problem when using the controls.

Terms and conditions: If for any reason you are not 100% satisfied with your purchase you can return it to us within 14 days and a full refund will be provided. Buyer assumes responsibility for return postage.
Postage on this item is at the standard rate, if you want your items sent by registered post please send me a message.
Potentiometers and other electronic soldered components must be returned in an un-used, un-soldered state and in the original packaging.
.
